Artwork Guidelines

W.T. Nickell Label Company

NO file upload when ordering on the website. Before or after you place your order, if you have an art file, please email the file to info@kegcollar.com:


Custom Keg Collars

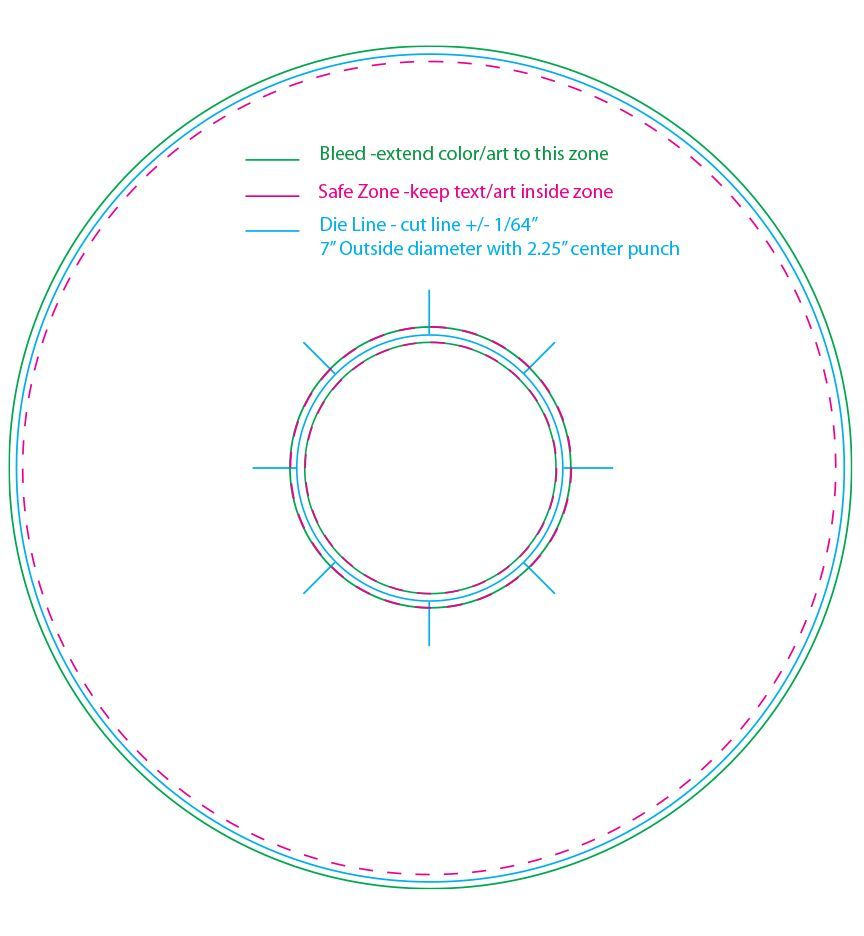

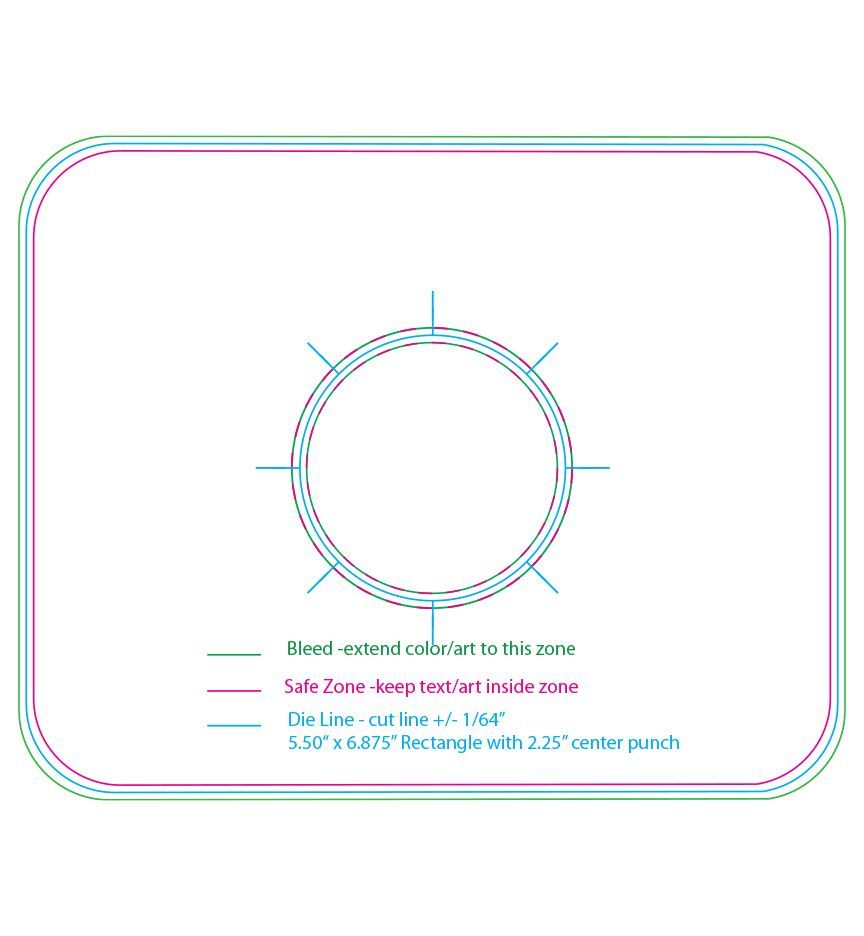

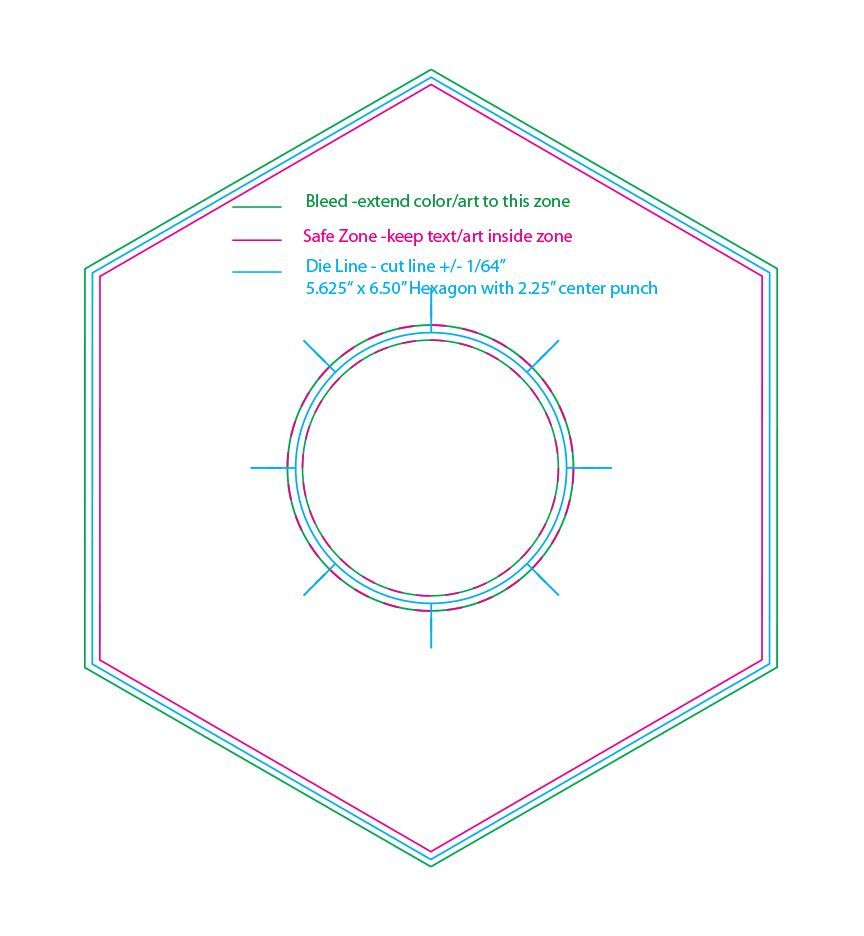

Your artwork should be a vector file. Adobe Illustrator, Adobe .eps, and Adobe .pdf are preferred. All fonts should be converted to outlines or you must include the font file used when sending over your art. If your keg collar has bleed, meaning the color extends beyond the outside die line, please add 1/16″ bleed to each side where needed.

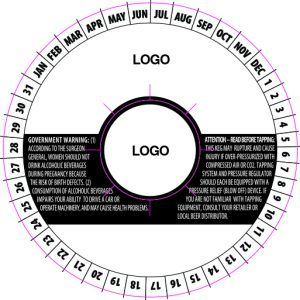

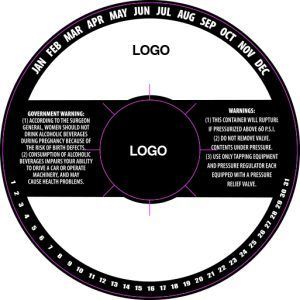

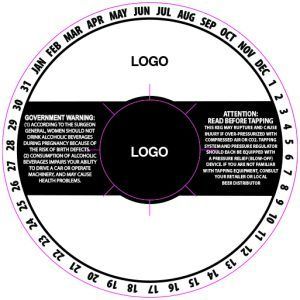

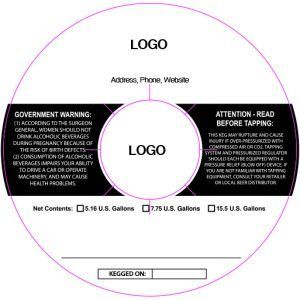

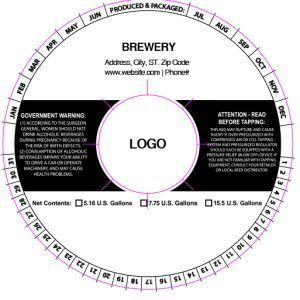

If you need help with your custom keg collar design, you can email your requirements and a vector logo, as well as the contact information you want printed on the collars, and we can typeset your custom keg collar on one of our many stock background art files. We will need to know information pertaining to keg sizes used, contact information, and beer styles if you want them listed on the keg collars, as well as any other information you want on your keg collar. To get started designing with one of the stock backgrounds listed, simply email us the background number 1–24 at info@kegcollar.com, and we can send you a VECTOR version .pdf where you can edit and insert your custom information in one of our stock backgrounds using Adobe Illustrator or another vector drawing program. OR email info@kegcollar.com if you need help with design.

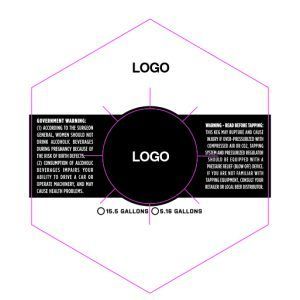

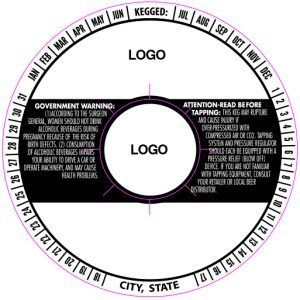

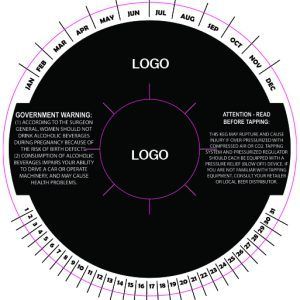

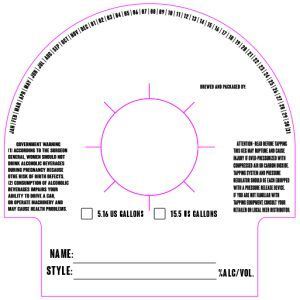

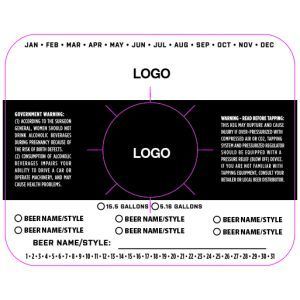

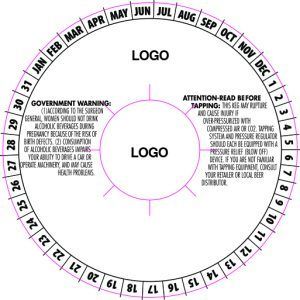

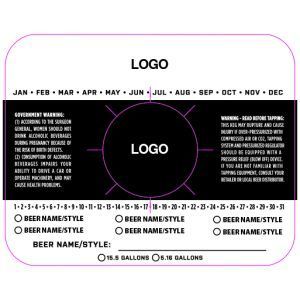

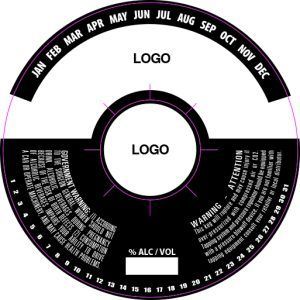

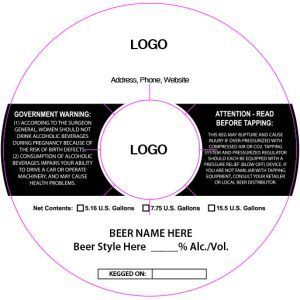

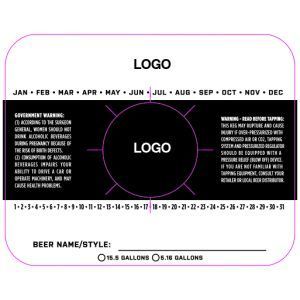

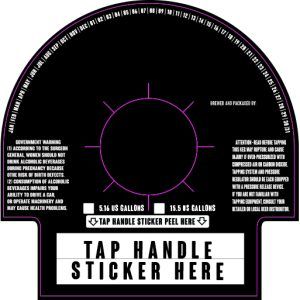

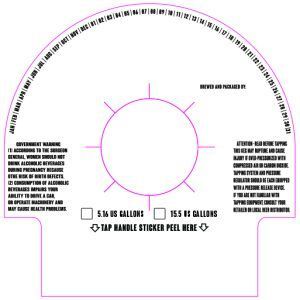

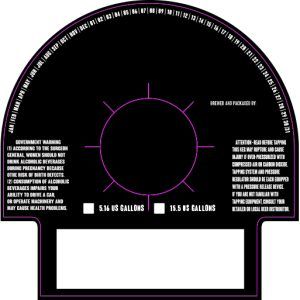

The background files on this page are images. Email info@kegcollar.com for the vector background file, and we can send you a vector file that can be edited and sent back with your order. ADD YOUR LOGO TO CENTER PUNCH-OUTS FOR A CUSTOM KEG CAP LABEL, GROWLER TAG, OR CUSTOM TAG YOU CAN RE-PURPOSE ELSEWHERE – SEND TAP HANDLE STICKER ART SEPARATELY IF ORDERING KEG COLLAR TAP HANDLE COMBOS. WE CAN ORDER A CUSTOM DIE FOR ANY SHAPE AND SIZE FOR AN ADDITIONAL ONE-TIME DIE COST TO PRINT YOUR CUSTOM DIE-SHAPE TAP HANDLE STICKERS AND KEG COLLARS.

3″ Custom Keg Wraps

Your artwork should be a vector file. Adobe Illustrator, Adobe .eps, and Adobe .pdf are preferred. All fonts should be converted to outlines or you must include the font file used. Keg Wraps can NOT have BLEED left to right, unless printing 4-color digital wraps. Your image/artwork must be held within the image size repeating options. DON’T FORGET BLANK SPACE ON EACH END FOR SEPARATION BETWEEN REPEATING ART IMAGES, which will help if trimming is needed when applying.

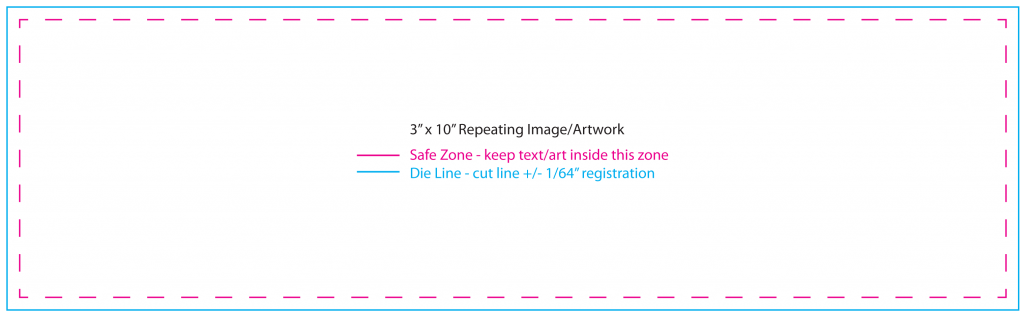

White slide with a small centered multicolored text block and dashed pink-and-blue border.

…our 3″ x 10″ repeating image, 3″ wraps work well on both 1/6 barrels and 1/2 barrels. Easily trim to size off the rolls. You can download the template here and have your design made to fit our repeat/template:

6″ wraps are 6″ x 10″ repeating images with the same bleed requirements as the 3″ x 10″. WE CAN, HOWEVER, MAKE THE 6″ WRAPS ANY REPEAT UP TO 38″, SO YOU CAN DESIGN UP TO 6″ X 38″ REPEATING ART. You can have a custom repeat based on the circumference of your kegs. A typical sixth barrel is 29.25″ in circumference.

6″ Custom Keg Wraps

Your artwork should be a vector file. Adobe Illustrator, Adobe .eps, and Adobe .pdf are preferred. All fonts should be converted to outlines or you must include the font file used. Keg Wraps can NOT have BLEED left to right, unless printing black and white or 4-color digital wraps. Your image/artwork must be held within the image size repeating options. DON’T FORGET BLANK SPACE ON EACH END FOR SEPARATION BETWEEN REPEATING ART IMAGES, which will help if trimming is needed when applying.

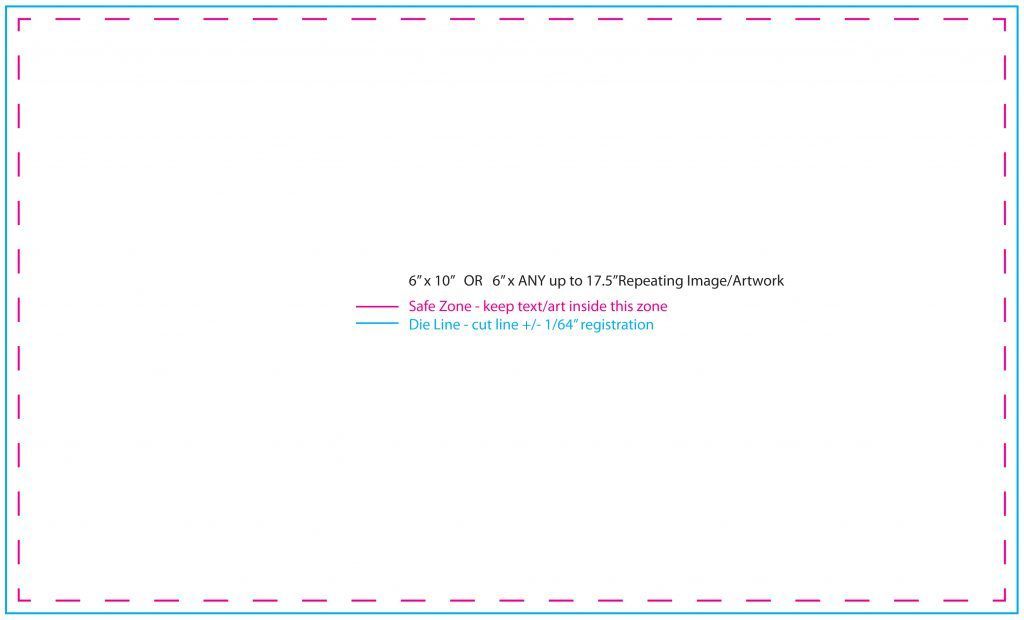

Screenshot of a mostly blank white slide with tiny centered text and colored horizontal lines.

…our 6″ x 10″ repeating image works well for 1/6 barrels. You can download it here and have your design made to fit our repeat/template: 6″ wraps are 6″ x 10″ repeating images with the same bleed requirements as the 3″ x 10″. WE CAN, HOWEVER, MAKE THE 6″ WRAPS ANY REPEAT UP TO 38″, SO YOU CAN DESIGN UP TO 6″ X 38″ REPEATING ART, FULL COLOR OR BLACK AND WHITE. You can have a custom repeat based on the circumference of your kegs. A typical sixth barrel is 29.25″ in circumference.

If you need help with your custom keg wrap design, you can email your requirements and a vector logo, as well as the contact information you want printed on the collars, and we can typeset your custom keg wrap on one of our many repeating image options. We will need to know information pertaining to contact information and logo, as well as any other information you want on your keg wraps. To get started designing with one of the die repeats listed, simply download and insert your information using a vector art program like Adobe Illustrator or Adobe Acrobat Pro. Email info@kegcollar.com if you need help with your artwork.

Custom 3.5″ & 4″ Promotional Stickers – Individual Handouts

Your artwork should be a vector file. Adobe Illustrator, Adobe .eps, and Adobe .pdf are preferred. All fonts should be converted to outlines or you must include the font file used. If your promotional sticker artwork has bleed, meaning color extends beyond the outside die line, please add 1/16″ bleed all the way around.

Concentric colored circles diagram with labels for bleed, safe zone, and trim line.

…4″ promotional sticker die template, you can download it here and have your design made to fit our die template:

If you need help with your custom promotional sticker design, you can email your requirements and a vector logo, as well as the contact information you want printed on the collars, and we can typeset your custom promotional sticker. Email info@kegcollar.com if you need help with your artwork.

Custom 2″ & 2.25″ Vented & Tamper-Evident Keg Cap Stickers on Rolls

Your artwork should be a vector file. Adobe Illustrator, Adobe .eps, and Adobe .pdf are preferred. We can accept other file types for digitally printed cap stickers as long as they are 300 dpi or greater. Those file types can be .jpg, .png, or .psd. All fonts should be converted to outlines or you must include the font file used. If your promotional sticker artwork has bleed, meaning color extends beyond the outside die line, please add 1/16″ bleed all the way around.

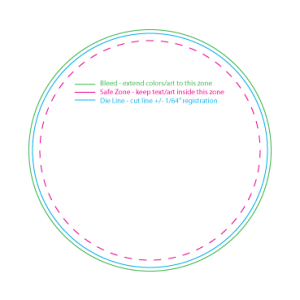

Color guide for a circular badge: green, pink, and blue concentric outlines with dashed inner safe zone.

…2.25″ keg cap sticker die template, you can download it here and have your design made to fit our die template. The tamper-evident caps will require a 2″ keg cap sticker to avoid covering the vents:

Email info@kegcollar.com if you need help with your artwork.

Custom 3.625″ x 8.00″ 12 oz. Can Labels

Your artwork should be a vector file. Adobe Illustrator, Adobe .eps, and Adobe .pdf are preferred. We can accept other file types for digitally printed cap stickers as long as they are 300 dpi or greater. Those file types can be .jpg, .png, or .psd. All fonts should be converted to outlines or you must include the font file used. If your beer can label artwork has bleed, meaning color extends beyond the outside die line, please add 1/16″ bleed all the way around.

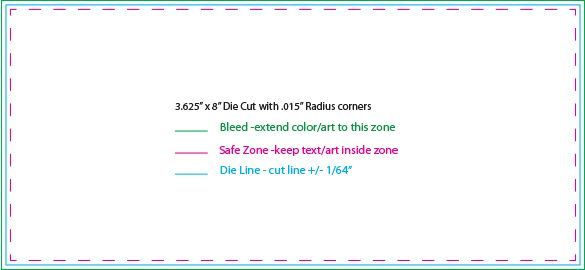

Color-coded chart with three horizontal lines and a small title centered above.

…3.625″ x 8.00″ 12 oz. can label die template, you can download it here and have your design made to fit our die template:

Email info@kegcollar.com if you need help with your artwork.

Custom 3.625″ x 8.375″ Overlapping by 1/8″ 12 oz. Can Labels

Your artwork should be a vector file. Adobe Illustrator, Adobe .eps, and Adobe .pdf are preferred. We can accept other file types for digitally printed cap stickers as long as they are 300 dpi or greater. Those file types can be .jpg, .png, or .psd. All fonts should be converted to outlines or you must include the font file used. If your beer can label artwork has bleed, meaning color extends beyond the outside die line, please add 1/16″ bleed all the way around.

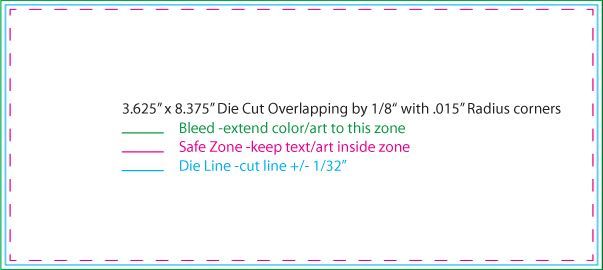

Engineering diagram with colored cut lines, bleed, safe zone, and die line labels on a white background

…3.625″ x 8.375″ 12 oz. can label die template, you can download it here and have your design made to fit our die template:

Email info@kegcollar.com if you need help with your artwork.

Custom 5″ x 8.375″ Overlapping by 1/8″ 16 oz. Can Labels

Your artwork should be a vector file. Adobe Illustrator, Adobe .eps, and Adobe .pdf are preferred. We can accept other file types for digitally printed cap stickers as long as they are 300 dpi or greater. Those file types can be .jpg, .png, or .psd. All fonts should be converted to outlines or you must include the font file used. If your beer can label artwork has bleed, meaning color extends beyond the outside die line, please add 1/16″ bleed all the way around.

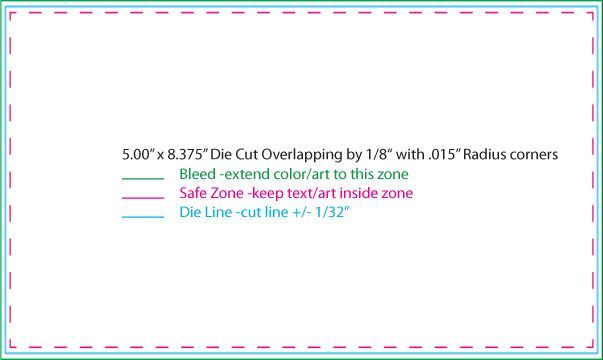

Technical sizing diagram with dashed pink and teal safe-zone outlines and bleed/cut lines on a white background

…5″ x 8.375″ 12 oz. can label die template, you can download it here and have your design made to fit our die template:

Email info@kegcollar.com if you need help with your artwork.

Custom 5″ x 8″ 16 oz. Can Labels

Your artwork should be a vector file. Adobe Illustrator, Adobe .eps, and Adobe .pdf are preferred. We can accept other file types for digitally printed cap stickers as long as they are 300 dpi or greater. Those file types can be .jpg, .png, or .psd. All fonts should be converted to outlines or you must include the font file used. If your beer can label artwork has bleed, meaning color extends beyond the outside die line, please add 1/16″ bleed all the way around.

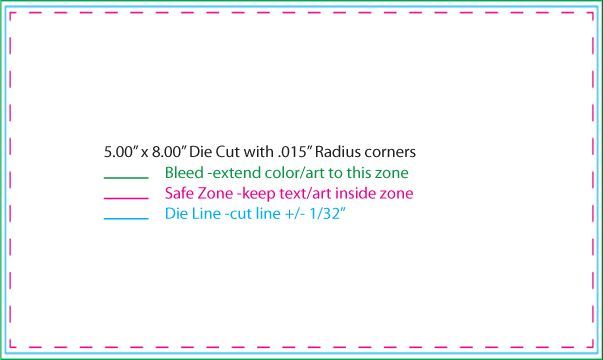

Cut card template with bleed, safe zone, and red dashed cut lines on a white background

…5″ x 8″ 16 oz. can label die template, you can download it here and have your design made to fit our die template:

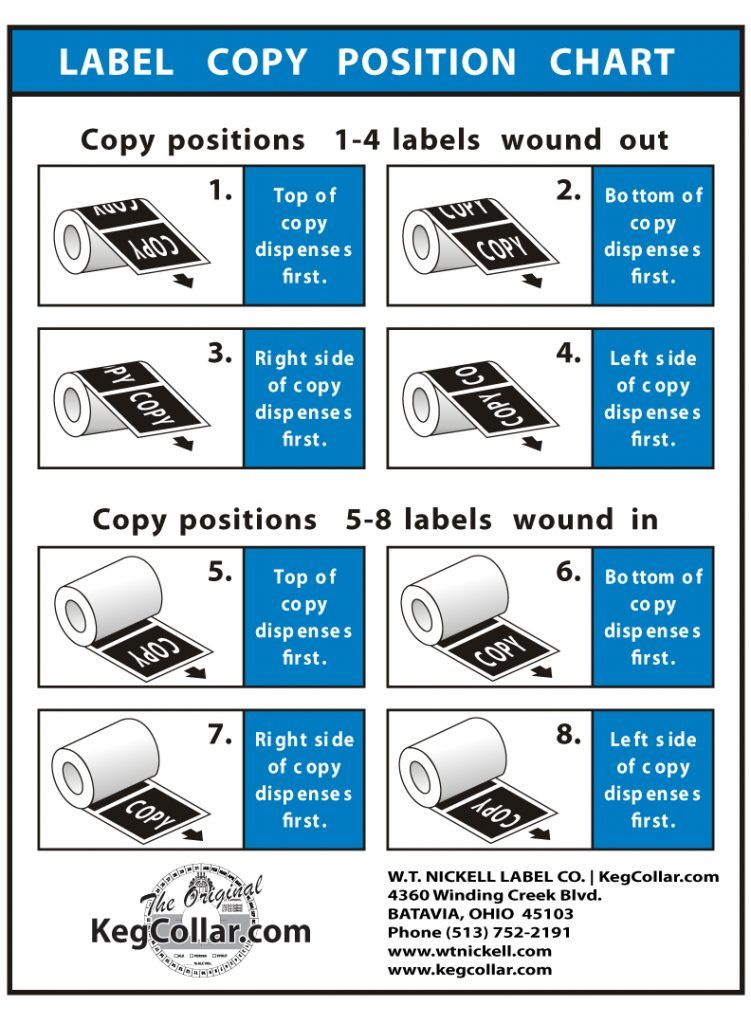

Chart showing keg label copy positions 1-8 with small black-and-white diagrams and blue instruction boxes.
